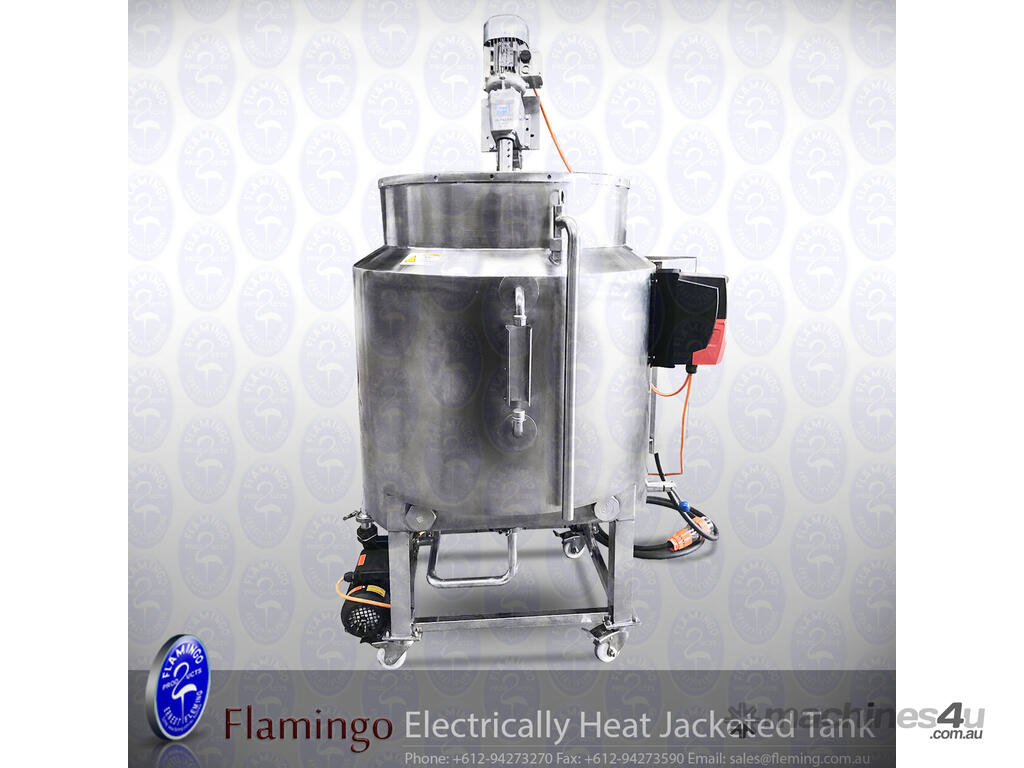

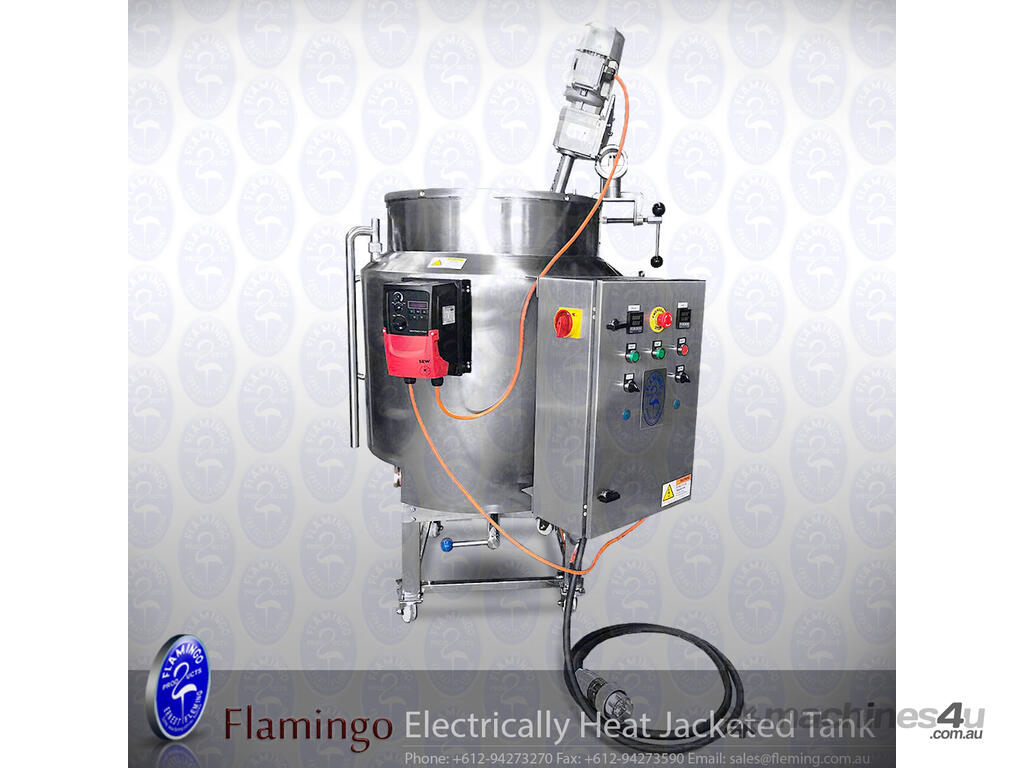

Flamingo Electrically Heat, Jacketed Tank with Clamp-on Stirrer (EFT-J200)

Lane Cove, NSW - Delivers Nationally

<div id="description">

Flamingo EFT-J Water/Oil Jacketed Tanks are electrically heated, Non-Pressure rated tanks and are available as a standard model or can be fabricated to customer specification on request.

EFT-J vessels are suitable for heating or cooling with side and bottom-scraper agitation for non-stick, even mixing and temperature distribution.

Available in Stainless steel Grade #304 or #316 Stainless Steel (optional) and suitable for a vast range of applications in the food, pharmaceutical, cosmetic and chemical industries.

<em>* Please confirm specifications on order as features may change</em>

<strong>The Jackets and tanks are not pressure rated.</strong>
<h2><strong>Features: </strong></h2>
<ul>
<li>Water/Oil Jacketed  for Heating or Cooling</li>
<li>Electrically Heated</li>
<li>2 inch – 2.5 inch Cone bottom outlet (or to customer request)</li>
<li>Slow speed Gate-Stirrer with Bottom &amp; Side Teflon scrapers</li>
<li>Motor drive with slow speed gearbox</li>
<li>Twin Split Lids</li>
</ul>
<h2><strong>Benefits: </strong></h2>
<ul>
<li>Slow speed Gate stirrer with side and bottom Teflon scrapers (variable speed is available).
Suitable creams, lotions, hair conditioner, food sauces, chutneys and jams</li>
<li>Teflon side and bottom scrape mixing vessel to prevent sticking and burning.</li>
<li>200L ( 2.5mm skin thickness/ 2.5mm jacket thickness)</li>
<li>Thermostat and Temperature controls, corresponding thermo-controls to ensure accurate product temperature stability ( enquire for more information)</li>
<li>Two thermo-couple positions for small and maximum volumes.</li>
<li>Water to 90 degC/oil jacketed 120 deg C with electric heating</li>
<li>Sight-glass / dip stick for level indication.</li>
<li>Cone bottom fully welded with a radius weld for hygienic application.</li>
<li>Safety Grids for safety and easy loading of materials.</li>
<li>Removable heating elements (up to 24kW) when jacket empty</li>
<li>Electric motor with right-angle Gearbox or to customer request</li>
<li>Easily connected to Flamingo Emulsifiers for re-circulation or pumping and/or Fillers.</li>
<li>Can be supplied with Castors and/or Fork Lift Pads</li>
<li>Can be supplied on Load Cells</li>
</ul>


</div>
